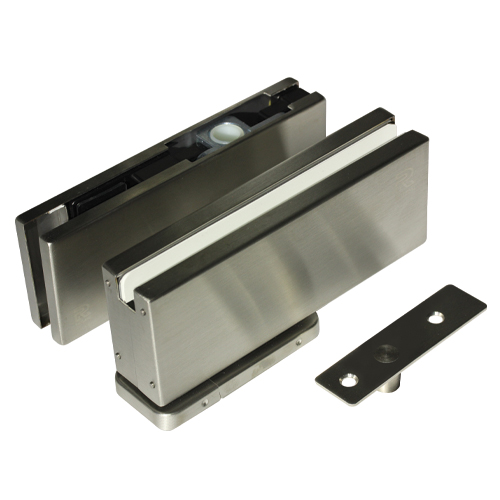

GP.3 Hydraulic Glass Patch Closer

Rutland GP.3 Hydraulic Glass Patch Closer is a size EN 3 closer and has been used in many varied applications globally, ideal for situations like concrete floors where it’s difficult to use the traditional Floor Spring closer due to underfloor heating, cavity or mechanical services.  Glass thickness can vary from 8mm to 13mm due to the necessary fitting packs, spacers and supports.  This is available in a non-hold open mechanism.

Features:

  • Fixed power size EN3
  • UL listed
  • Available in non-hold open as well as hold open

Fire tested and permitted door core Field of Applications:

Falcon Strebord 44, Falcon Strebord 54, Moralt, Vicaima

Instructional Videos

How to fit: Pull side

How to fit: Push side

Product features:

Product features:

Max Door Weight 80kg



Max Door Width 950mm



Power Size 3
Opening Angle 130°
Universal Application
Adjustable Latch Speed
Closing Speed



Max Glass Thickness 8-13mm
Guarantee

Available finishes:

  Satin Stainless Steel (SSS)

Downloads

Specification & Data Sheets

GP.3 Specification / Data Sheet
GP.3 Product Codes

Fitting Instructions & BIM downloads

GP.3 Fitting Instructions
GP.3 Fitting Glass Cut out instructions
