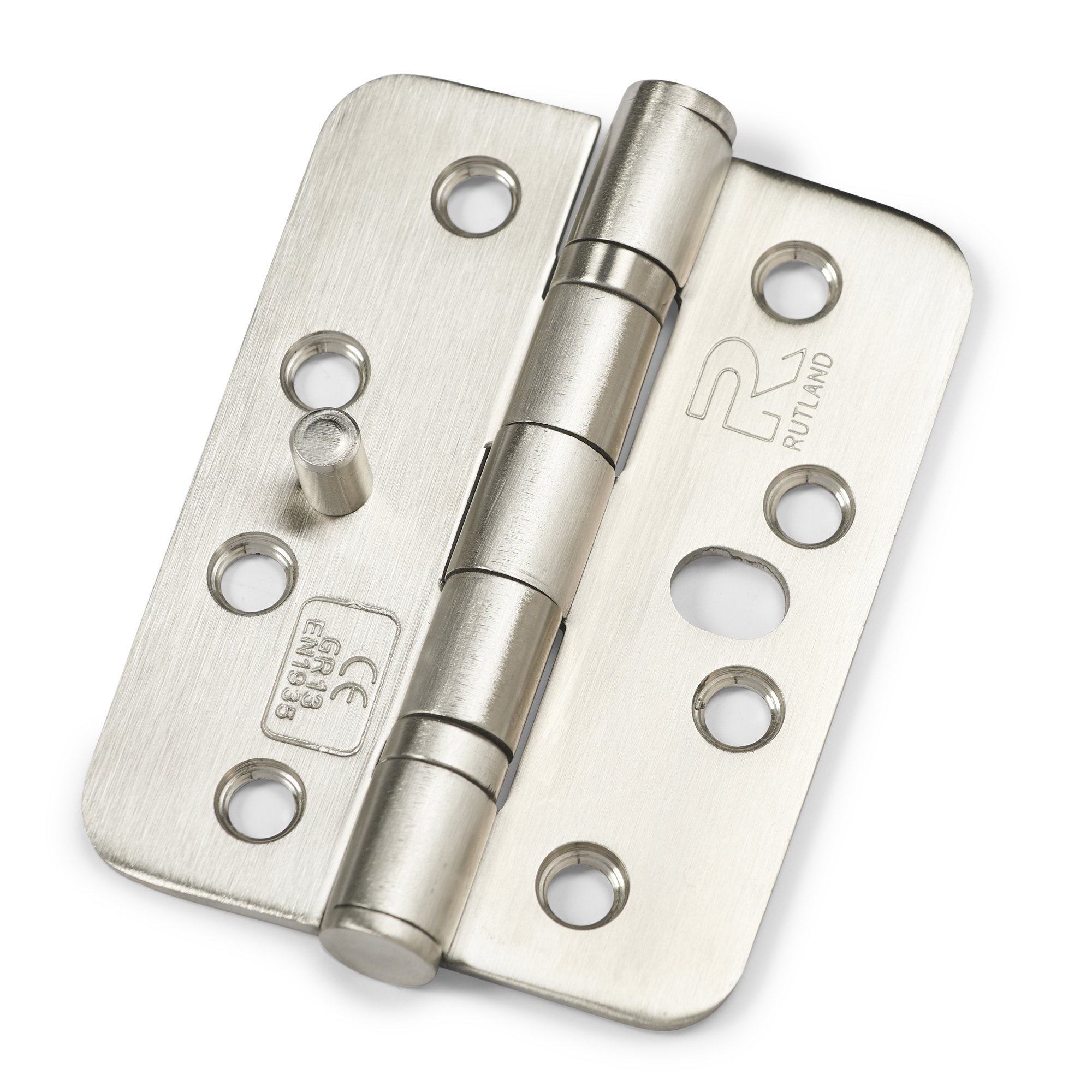

Hinge – Dog Bolt
- Suitable for use with back check door closers
- Welded button tip
- BS EN 1935 : 2002 Grade 13
- Grade 201 Stainless Steel
- 102 x 76 x 3mm
TECHNICAL INFORMATION
BS EN 1935 Classification
Rutland hinges have been independently tested to EN 1935 performance standard. They are CE marked and classified.
Primary Fire Testing
Rutland hinges have been tested to EN 1634 and BS 476. Test certificates are available on request.
Fire Doors
Intumescent MUST be used on fire doors – please enquire for latest testing details.
Fire tested and permitted door core Field of Applications:
Falcon Strebord 44, Falcon Strebord 54, Moralt, Vicaima
Instructional Videos
How to fit: Pull side
How to fit: Push side
Product features:
Max Door Weight 60-80kg
Max Door Width 950-1100mm
Power Size EN3/4
Opening Angle 180°
Universal Application
Adjustable Latch Speed
Adjustable Closing Speed
Rut Lock
FD30 to FD120 Timber Doors
See below download
Guarantee
Secured By Design
Options:
Hold open arm-set (not suitable for fire doors)
Back check
Available finishes:
Silver (SE)
Satin Nickel Plate (SNP)
Polished Nickel Plate (PNP)
Polished Brass (PVD)
White (WH)
Satin Brass (SB)
