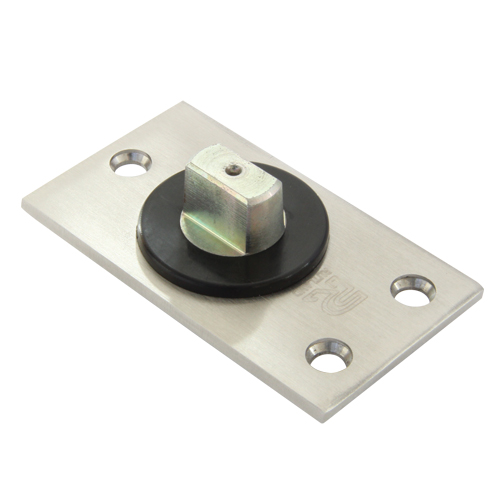

PS.260 Floor mount spindle

Rutland PS.260 Floor mount spindle is a heavy duty floor mounted bottom spindle for pivot door. Suitable for 200kg x 1100mm wide doors to swing double action. Suitable for single and double FD30 and FD60 fire doors:

• Allows doors to swing both ways
• In double action fits directly under door leaf meaning the plate isn’t visible
• bronze bearings oil impregnated for low maintenance
• Suitable for FD30 and FD60 doors, to BS 476 for both single and double door applications
• 25 year guarantee
• 304 grade stainless steel plate
• Satin finish

Technical Data sheet:

• Suitable for door 44mm thick and above
• Heavy duty for internal doors weighing up to 200kg
• Maximum door width 1100mm
• Permitted door gaps on 44mm thick fire doors – 3mm gap is permitted between the door and frame (unless tested with larger gaps)
• Permitted door gaps on 54mm thick fire doors – 3.5mm gap is permitted between the door and frame (unless tested with larger gaps)

Other compatible and related components:

• 106 Emergency release door stop – used for emergency on double action pivot door
• 190 Heavy duty adjustable double action pivot set top and bottom straps
• 170 Handed single action pivot set (where PS.260 offset to door allowing opening past frame stops)
