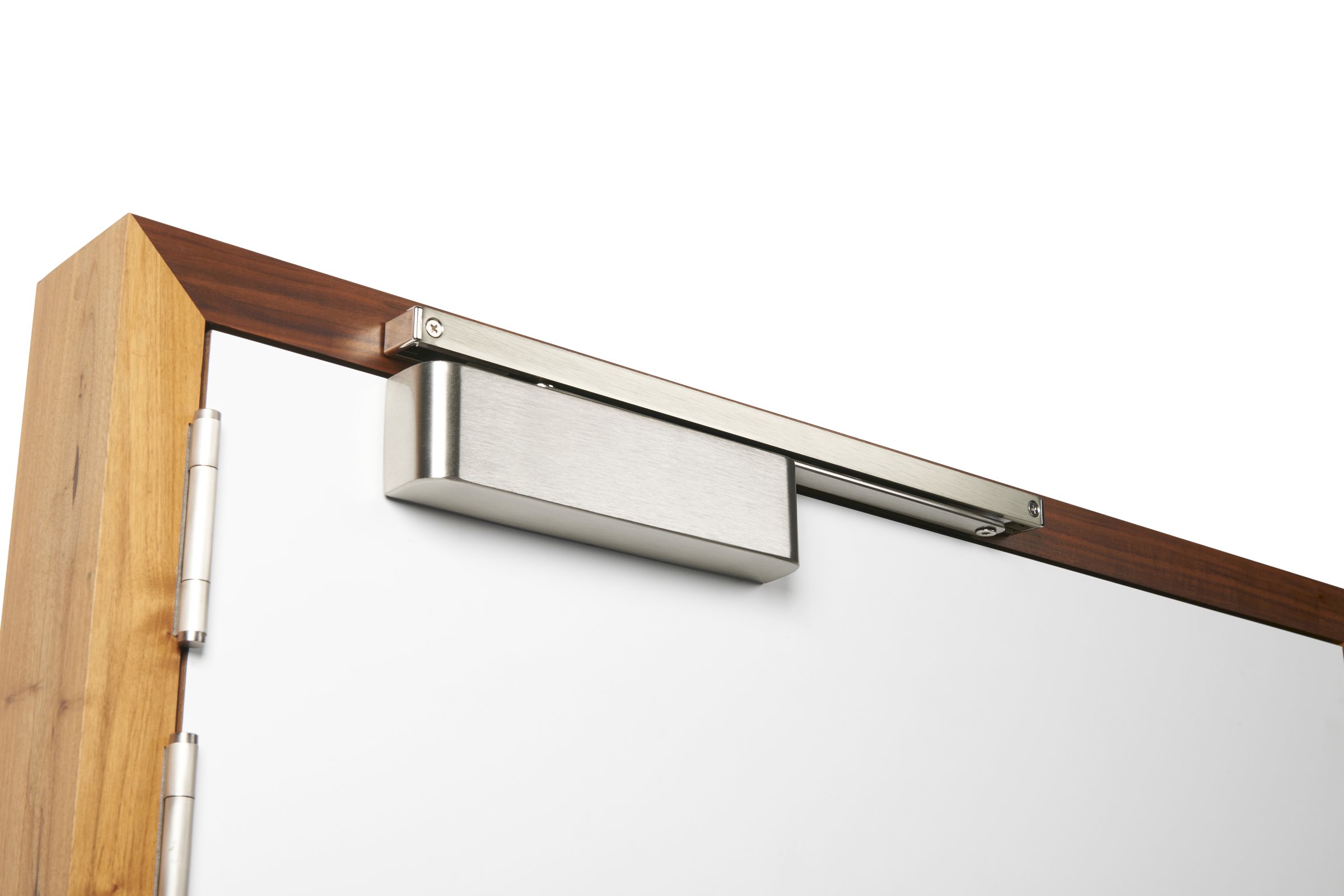

TS.11204 Cam Action Door Closer
Being renowned for its high efficiency and ease of opening with a cam action mechanism, the TS.11204 is a Certifire approved door closer for both push and pull side applications. This surface fixed slide arm door closer has a slimline projection of only 39mm, and is power adjustable by spring, power size 2-4.
This Surface Slide arm closer has a slimline construction (39mm projection) and temperature stable hydraulic fluid, which operates effectively in temperatures between -15°C and + 40°C.
Successfully third-party tested to BS EN1154 & CE marked to power size 2-4.
Features:
- Variable power adjustable EN2-4 – does doors up to 80kg & 1100mm wide
- Assists BS8300 for DocM contracts – helping to assist door sets with ease of opening
- Universal application – can be fitted in Pull-side, Push-side or Transom fitting position
- Very slimline, only projects 39mm away from the door
- Opening angle 110º
- Available in Silver, Satin Nickel, Polished Nickel, Polished Brass & Antique Brass for next day delivery
- Fire tested to EN1634-1
- Certifire Approved
- 35 year guarantee
- Corrosion Grade 3 – recommended for internal use. See below downloadable CE certificate (box 6)
Fire tested and permitted door core Field of Applications:
Falcon Strebord 44, Falcon Strebord 54, Moralt, Vicaima
Instructional Videos
How to fit: Pull side
How to fit: Push side
Product features:
Max Door Weight 60-80kg
Max Door Width 950-1100mm
Power Size EN3/4
Opening Angle 180°
Universal Application
Adjustable Latch Speed
Adjustable Closing Speed
Rut Lock
FD30 to FD120 Timber Doors
See below download
Guarantee
Secured By Design
Options:
Hold open arm-set (not suitable for fire doors)
Back check
Available finishes:
Silver (SE)
Satin Nickel Plate (SNP)
Polished Nickel Plate (PNP)
Polished Brass (PVD)
White (WH)
Satin Brass (SB)
