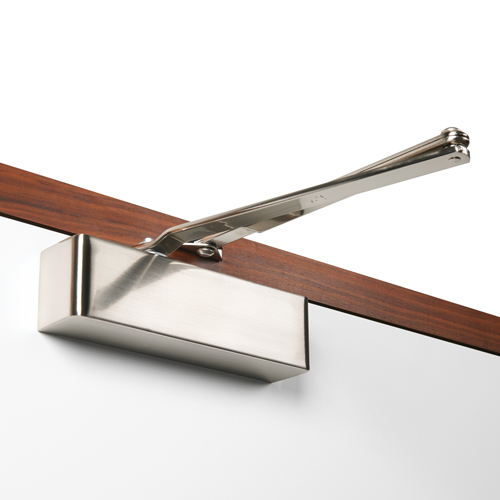

TS.4204 Door Closer

Rutland TS.4204 Door Closer is Certifire approved for Pull side, Transom and Parallel arm configurations with Back-check.  Ideal for budget medium duty contracts where aesthetics and longevity are not as critical.  Tested to BS EN 1634-1, BS EN 1154 with CE and UKCA – see downloads for permitted doors and configurations.

Standard pull-side application features:

  • Variable power size EN2-4
  • Suitable for doors up to 80kg & 1100mm wide
  • Adjustable closing & latch speed
  • Comes standard with Back-check
  • Optional Delayed action (not covered by Certifire approval)
  • Fire tested to BS EN 1634-1
  • Finishes: Silver SE, Satin Nickel Plate SNP and Polished Nickel Plate PNP

Fire tested and permitted door core Field of Applications:

Falcon Strebord 44, Falcon Strebord 54, Moralt, Vicaima

Instructional Videos

How to fit: Pull side

How to fit: Push side

Product features:

Product features:

Max Door Weight 80kg
Max Door Width 1100mm
Power Size EN2-4
Opening Angle 180°
Universal Application
Adjustable Latch Speed
Adjustable Closing Speed
Rut Lock
Third Party Certification
4204DABCCPR131218
Guarantee
Adjustable Delayed Action
Back Check
IFCC 1433

Options:

 Hold open arm-set (not suitable for fire doors)

Available finishes:

Silver (SE
Satin Nickel Plate (SNP)
  Polished Nickel Plate (PNP)

Downloads

Specification & Data Sheets

Full Information Pack
TS.4204 Specification / Data Sheet
TS.4204 Product Codes

Certification & Compliance

TS.4204 ANSI/BHMA Grade 1 Certificate
TS.4204 Certifire certificate
TS.4204 Declaration of Performance CE – Fig 66
TS.4204 Declaration of Performance UKCA – Fig 66
TS.4204 EU CE Certificate
TS.4204 EU CE Declaration of Performance
TS.4204 UKCA Certificate
TS.4204 UKCA Declaration of Performance

Fitting Instructions & BIM downloads

TS.4204 Fitting Instructions – Pull Side (Standard Arm)
TS.4204 Fitting Instructions – Push side (Parallel Arm)
