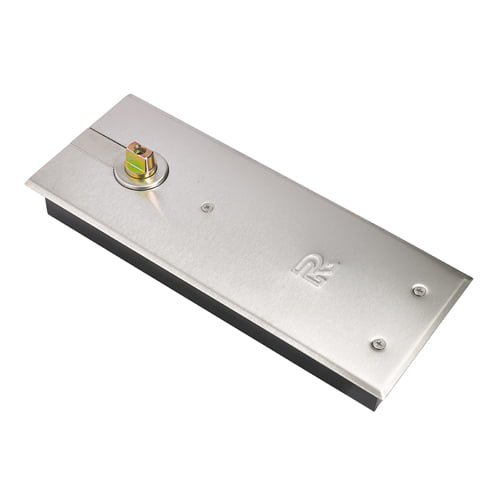

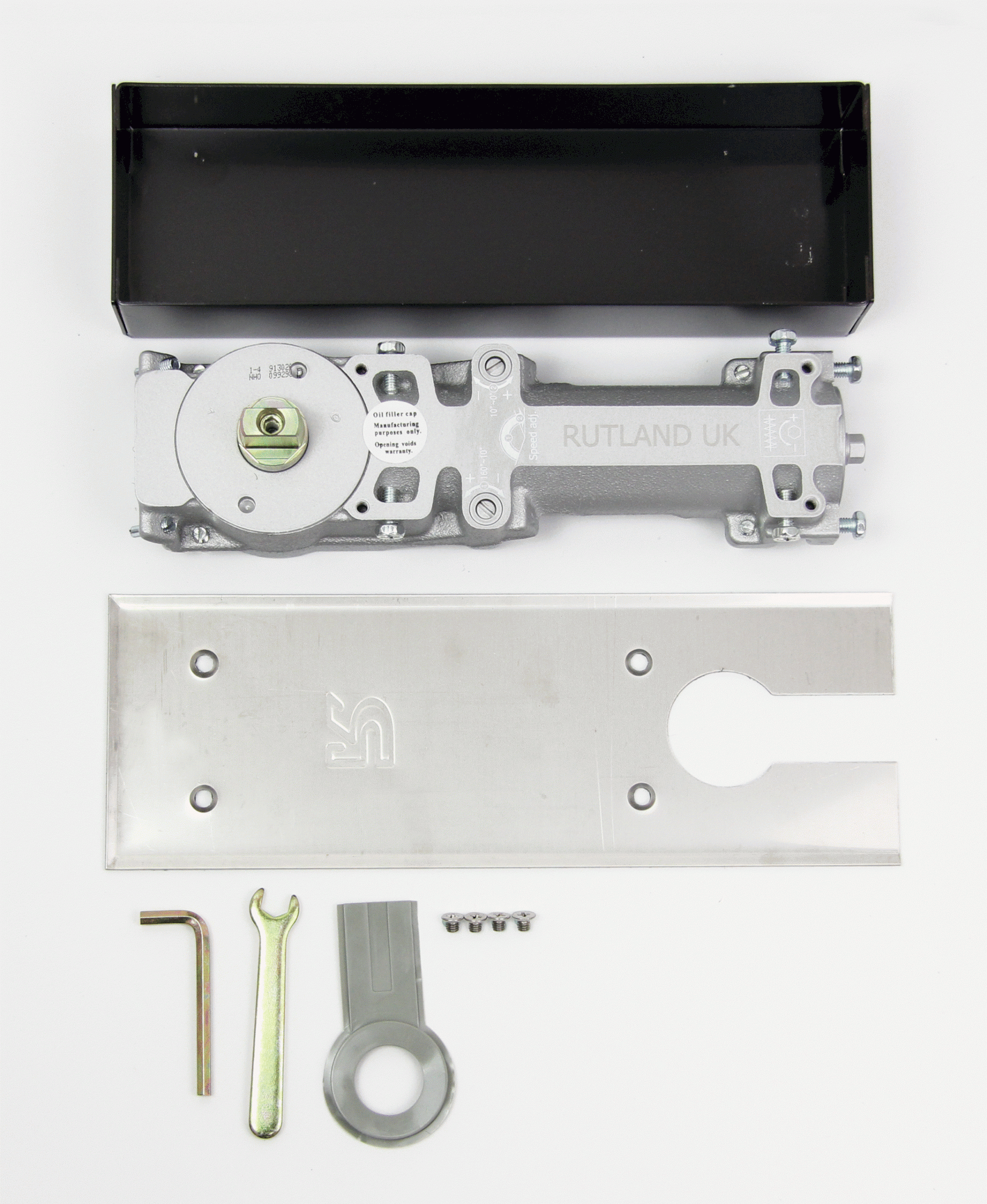

TS.7000 Floor Spring Range

Rutland TS.7000 Floor Spring range is made up of three different power sizes.  EN2, EN3 and EN4.  They are ideal for locations such as hospitals and care homes where easy opening is essential.  They are enhanced with powerful, user friendly cam and roller action mechanisms.

Features:

  • Fixed power sizes EN2/EN3/EN4
  • EN2 does doors up to 70kg & 850mm wide, EN3 does doors up to 105kg & 950mm wide, EN4 does up to 150kg & 1150 wide
  • Adjustable closing speed, latch speed & back check (optional not covered by CE/UKCA)
  • Fire tested to EN1634-1
  • UKCA marked
  • Available in Satin Stainless Steel, Polished Brass & Antique Brass for next day delivery

Fire tested and permitted door core Field of Applications:

Falcon Strebord 44, Falcon Strebord 54, Moralt, Vicaima

Instructional Videos

How to fit: Pull side

How to fit: Push side

Product features:

Max Door Weight 60-80kg

Max Door Width 950-1100mm

Power Size EN3/4

Opening Angle 180°

Universal Application

Adjustable Latch Speed

Adjustable Closing Speed

Rut Lock

FD30 to FD120 Timber Doors

See below download

Guarantee

Secured By Design

Options:

Hold open arm-set (not suitable for fire doors)

Back check

Available finishes:

Silver (SE)

Satin Nickel Plate (SNP)

Polished Nickel Plate (PNP)

Polished Brass (PVD)

White (WH)

Satin Brass (SB)

Black (BK)
