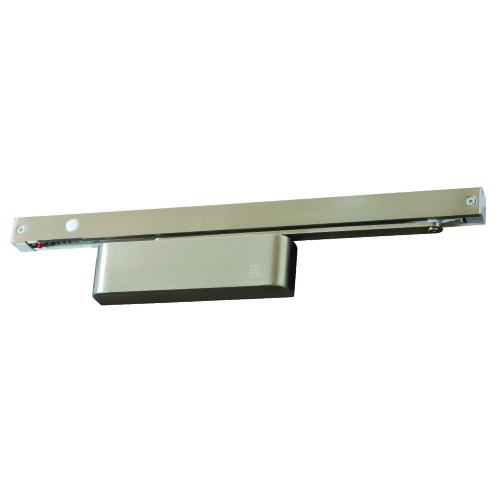

TS.FIRETRAK.114 Electromagnetic Slide Arm Closer is a surface mounted Electromagnetic hold open slide arm with cam action door closer designed for fire and smoke compartmentation doors. Fire and smoke doors will operate in a controlled close with the TS.FIRETRAK.114 when the fire or smoke alarm is activated.
Features:
- Variable power size EN2-4, does doors up to 80kg & 1100mm wide
- Assists BS8300 for DocM contracts (ease of opening forces)
- Universal application – can be fitted in Standard, Parallel arm or Transom fitting position. Push, Pull, Left or Right.
- Tested to EN 1155 (electrical compatibility), EN 1154 (controlled door closing devices) & EN1634 (dual orientation fire tests)
- Third-party fire certificated
- UL and ANSI grade 1 classification
- 5 year guarantee
Designed for use with:
- PSU.1224.9 – Power Supply Unit
Voltage Output : 24v DC
It is recommended that for each E-Mag Door Closer (Responder 24 and FireTrak 114 & FireTrak 115) that a 1A Power Supply Unit is specified, however if fitting to double doors then a 2A Power Supply Unit can be used to operate the two E-Mag Closers.
Silver (SE)
Satin Nickel Plate (SNP)
