Multipoint Lock

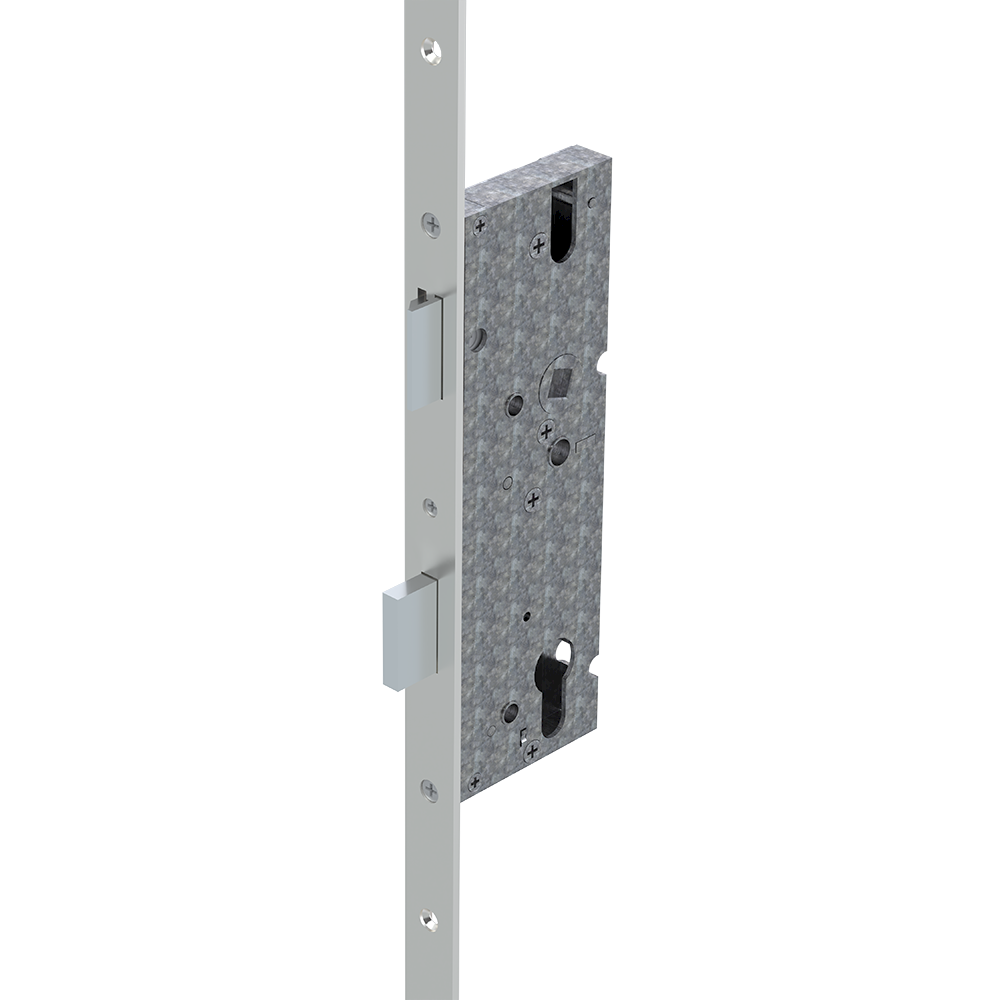

Rutland RMP3 Multipoint Lock provides solutions for doorset manufacturers from it’s non-handed lock and keeps, to all 3 keeps being adjustable for ease of installation and self-closing, through to auto locking for ease of use by residents.  Supported by Police SBD, the RMP3 multipoint lock is successfully tested for fire, smoke, PAS24:2022 security, BS6375 weather, repeated opening and closing and strength tests.
- 3 locking points
- 45mm Backset
- Automatic locking (no need to lift handle)*
- Universal non-handed
- Adjustable centre keep
- Adjustable top and bottom keeps
Compliance – Certification & TestingÂ
- Fire tested BS EN 1634-1 30 mins**
- Smoke tested BS EN 1634-3**
- Security tested PAS24:2022**
- Weather tested BS 6375-1**
- Repeated opening & closing BS 6375-2**
- Strength tested BS 6375-3**
- Durability tested 200,000 cycles
- Corrosion tested 480 hours Grade 5 BS EN 1670
- Police Secured by Design (SBD) Preferred Specification
*Achieve full locking with thumb-turn or key
**Tested as a safety critical component within both timber
***When used within timber and composite fire doorsets must use IP.RMP3 intumescent k
Fire tested and permitted door core Field of Applications:
Falcon Strebord 44, Falcon Strebord 54, Moralt, Vicaima
Instructional Videos
How to fit: Pull side
How to fit: Push side
Product features:
Max Door Weight 60-80kg
Max Door Width 950-1100mm
Power Size EN3/4
Opening Angle 180°
Universal Application
Adjustable Latch Speed
Adjustable Closing Speed
Rut Lock
FD30 to FD120 Timber Doors
See below download
Guarantee
Secured By Design
Options:
Hold open arm-set (not suitable for fire doors)
Back check
Available finishes:
Silver (SE)
Satin Nickel Plate (SNP)
Polished Nickel Plate (PNP)
Polished Brass (PVD)
White (WH)
Satin Brass (SB)
