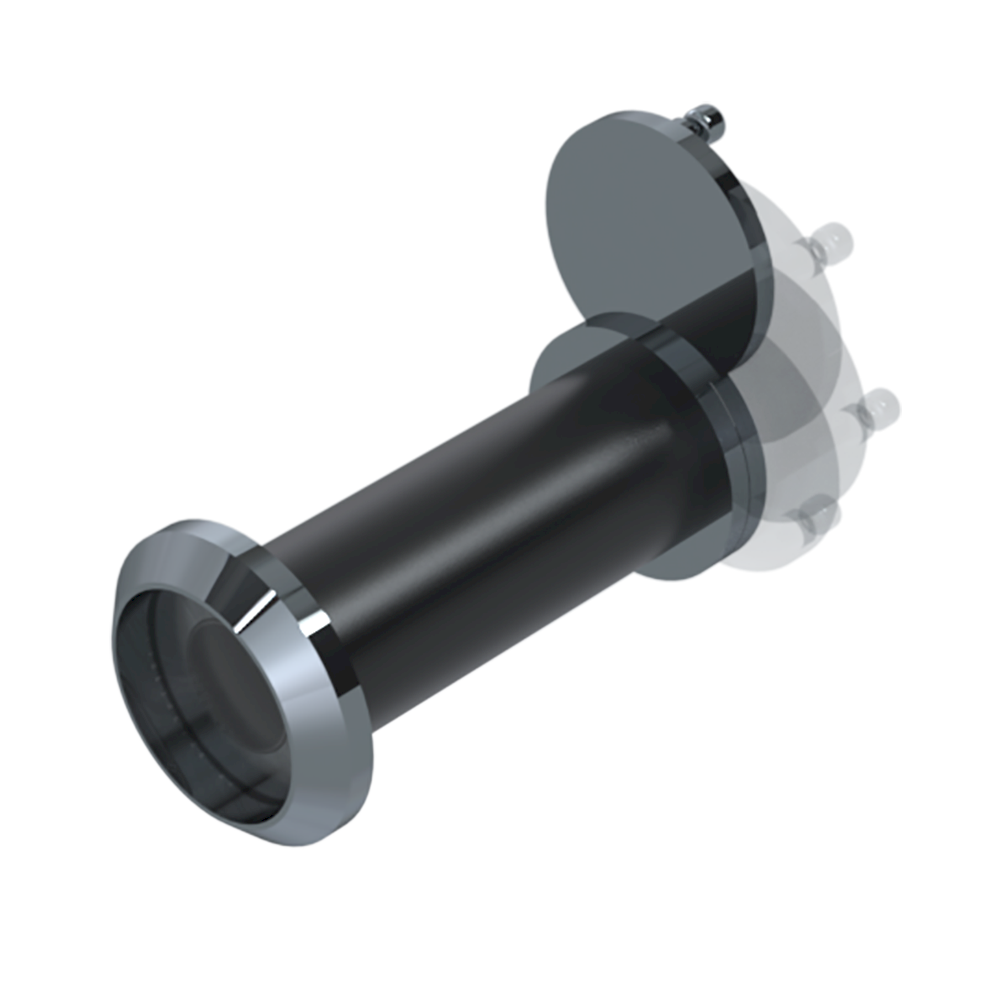

Door Viewer
Rutland fire and security tested Door viewers are safety critical morticed components of the front entrance fire door. Â From a security aspect, the wide-angle viewer is used to check who is the other side of an apartment door before opening. Â From a fire safety perspective they are fire and smoke tested to the requirements of TS002:2009.
- Adjustable for Door thickness 41 to 74mm
- Wide angle vision 140°
- Supplied with pre-applied intumescent as standard
- Privacy cover
- Core diameter 14mm dia
- Patented design for fire integrity
- Mortice cut 18mm dia
Compliance – Certification & TestingÂ
- Tested to DHF TS002:2009
- Fire tested BS EN 1634-1*
- Smoke tested BS EN 1634-3*
- Corrosion resistance BS EN 1670Â Grade 5
- Police Secured by Design (SBD) Preferred Specification
*Tested as named component in Timber Doorset
**Door viewer to be ordered separately
Fire tested and permitted door core Field of Applications:
Falcon Strebord 44, Falcon Strebord 54, Moralt, Vicaima
Instructional Videos
How to fit: Pull side
How to fit: Push side
Product features:
Max Door Weight 60-80kg
Max Door Width 950-1100mm
Power Size EN3/4
Opening Angle 180°
Universal Application
Adjustable Latch Speed
Adjustable Closing Speed
Rut Lock
FD30 to FD120 Timber Doors
See below download
Guarantee
Secured By Design
Options:
Hold open arm-set (not suitable for fire doors)
Back check
Available finishes:
Silver (SE)
Satin Nickel Plate (SNP)
Polished Nickel Plate (PNP)
Polished Brass (PVD)
White (WH)
Satin Brass (SB)
Black (BK)
