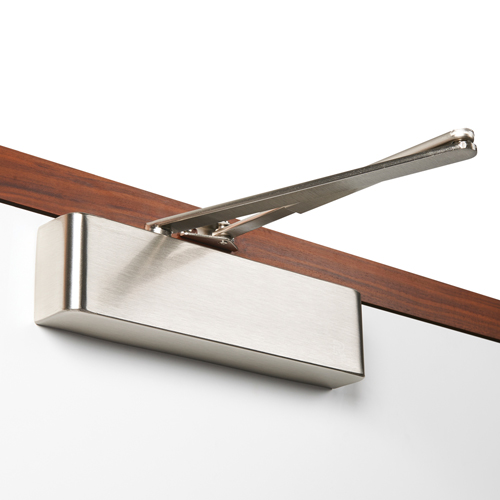

TS.9206 Door Closer
Rutland TS.9206 Door Closer is a highly efficient door closer with immense torque and control, ideal for heavy usage. It comes with a slimline appearance and power-adjustable force to meet the specification requirements of the most discerning architectural contracts.
It’s adjustable power control makes it a great choice for accessibility requirements, aiding compliance with BS8300 and ‘Doc M’ building code.
Successfully third-party tested to BS EN1154 & CE marked to power size 2-6.
Features:
- Variable power size, adjustable from EN2 to EN6
- Rated for doors up to 120kg
- Door width, Pull-side fitting 415 – 1400mm
- Door width, Push-side fitting 490 – 1250mm
- Minimum door width for BS8300: 835mm (push-side fitting), 728mm (pull-side fitting)
- Universal application – can be fitted in Standard, Parallel arm or Transom fitting position
- Opening angle 180º
- Delayed action function
- Back check function
- 8 finishes available for next day delivery
- Dimensions: 307 x 77 x 47mm (WxHxD)
- 35 year guarantee
Fire tested and permitted door core Field of Applications:
Falcon Strebord 44, Falcon Strebord 54, Moralt, Vicaima
Instructional Videos
How to fit: Pull side
How to fit: Push side
Product features:
Max Door Weight 60-80kg
Max Door Width 950-1100mm
Power Size EN3/4
Opening Angle 180°
Universal Application
Adjustable Latch Speed
Adjustable Closing Speed
Rut Lock
FD30 to FD120 Timber Doors
See below download
Guarantee
Secured By Design
Options:
Hold open arm-set (not suitable for fire doors)
Back check
Available finishes:
Silver (SE)
Satin Nickel Plate (SNP)
Polished Nickel Plate (PNP)
Polished Brass (PVD)
White (WH)
Satin Brass (SB)
