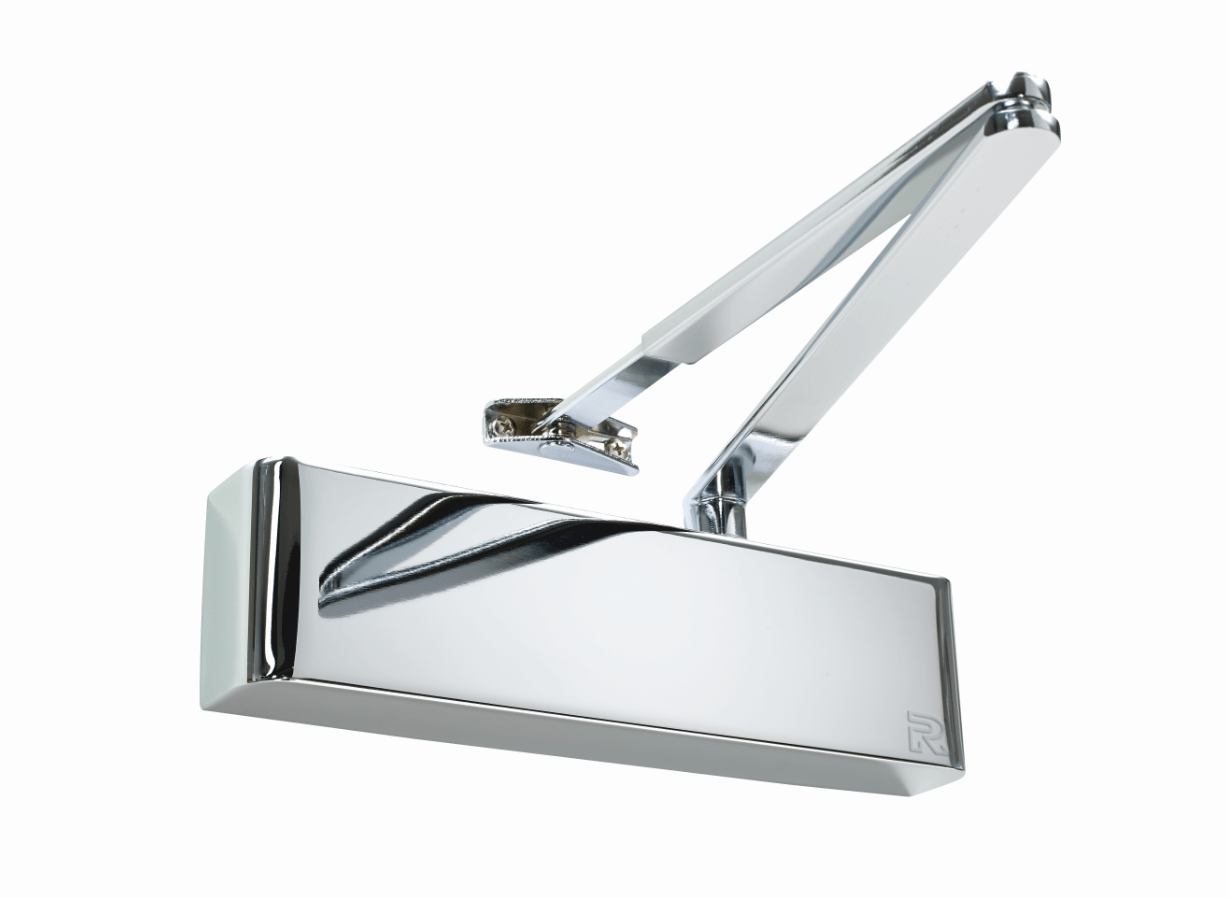

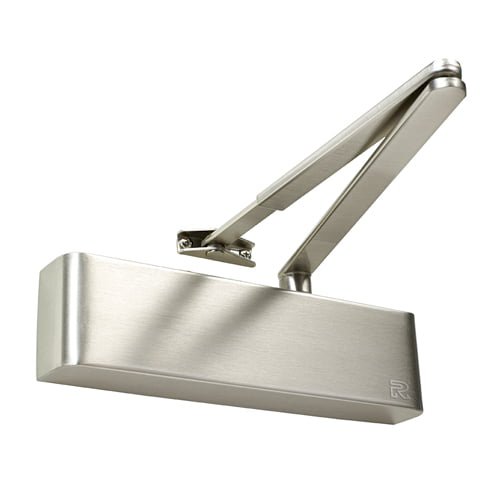

TS.9205 Door Closer
The Rutland TS.9205 Certifire approved Door Closer is engineered to last, known for its high efficiency & ease of opening. They are super adjustable, and can be adjusted to suit almost all types of door.
The rack-and-pinion action of this range gives them positive strength to overcome air-pressure differentials (“blowing open”), making them the ideal closer for draughty corridors and external doors.
Successfully third party tested to BS EN1154 & CE marked to power size 2-5.
Features:
- Variable power adjustable EN1154 sizes 2 – 5; for doors up to 110kg
- Max door width pull-side is 1250mm wide, push-side 1100mm
- Assists BS8300 for Doc M contracts – helping to assist door sets with ease of opening
- Opening angle 180º
- Universal application – can be fitted in Standard, Parallel arm or Transom fitting position
- Available with delayed action & back check
- 12 finishes available in stock for next-day delivery
- Standard finishes – Corrosion resistance – Grade 3: High Corrosion resistance
- TS.9205 MARINE 316 door closer has been designed for external use, – Grade 5: Exceptionally high corrosion resistance
- Fire tested to EN1634-1
- 35 year guarantee
Certification & Compliance
- EPD VERIFIED as per ISO 14025 and EN 15804+A2
Falcon Strebord 44, Falcon Strebord 54, Falcon Stredor 54, Halspan Optima 30, WIA Marksman 44
Fire tested and permitted door core Field of Applications:
Certification & Compliance Summary
- Certifire
- BS EN 1154
- BS EN 1634
- BS EN 1670 – Grade 5
- UKCA
- CE
See Downloads section below for full details.
Product features:
Max Door Weight EN2-5 up to 110kg
Max Door Width EN2-5 up to 1250mm
Power Size EN2-5 Fig1 EN2-4 Fig66
Certified BS EN 1634-1
Opening Angle 180°
Universal Application
Adjustable Back Check (Optional)
Adjustable Delayed Action (Optional)
Adjustable Closing Speed
Rut Lock
FD30 to FD120 Timber Doors
See below download
Guarantee
Secured By Design
Min Door Width 835mm fig1 728mm fig66
Options:
Hold-Open arm (Not to be used on fire doors. Not covered by CE
+ Drop plate (Not covered by CE)
+ For uninsulated steel doors see code in components list for intumescent kit
Available finishes:
Silver (SE)
Satin Nickel Plate (SNP)
Polished Nickel Plate (PNP)
Polished Brass (PVD)
Satin Stainless Steel (SSS)
Polished Stainless (PSS)
Black (BK)
Antique Brass (AB)
Satin Brass (SB)
Dark Bronze (DB)
Weathered Bronze (WB)
Marine 316 (M)
