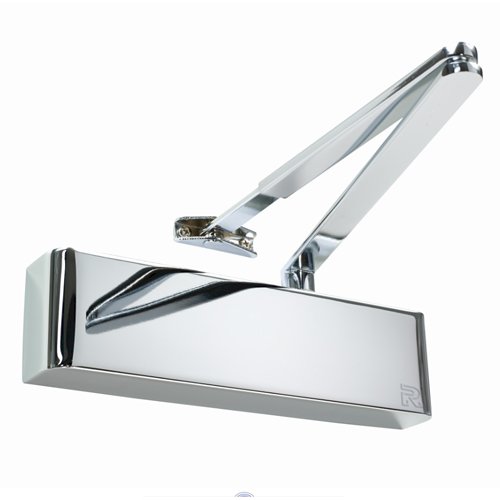

TS.5204 Door Closer
Rutland TS.5204 is a Certifire approved door closer, with power adjustment which makes fitting and adjustment easier for the installer.
Successfully third party tested to BS EN1154 and BS EN 1634-1.
Features:
- Variable power size, adjustable from EN2 to EN4
- Rated for doors up to 80kg
- Door width, Pull-side fitting 360 – 1100mm
- Door width, Push-side fitting 485 – 1100mm
- Tested to assist BS8300 for DocM contracts (887mm/920mm min door size)
- Minimum door width tested for BS8300: 920mm push-side fitting, 887mm pull-side
- Universal application – can be fitted in Standard or Parallel arm
- Opening angle 180º
- Adjustable closing and latch speed
- Back check as standard
- Finishes in stock range – Silver, Satin Nickel, Polished Nickel, Polished Brass, Satin Brass, Black
- 25 year guarantee
Fire tested and permitted door core Field of Applications:
Falcon Strebord 44, Falcon Strebord 54
Certification & Compliance Summary
- EPD VERIFIED as per ISO 14025 and EN 15804+A2
- Certifire
- BS EN 1154
- BS EN 1634-1
- BS EN 1634-3
- BS EN m10140-2
- UL228
- UKCA
- CE
See Downloads section below for full details.
Product features:
Max Door Weight 60-80kg
Max Door Width 950-1100mm
Power Size EN3/4
Opening Angle 180°
Universal Application
Adjustable Latch Speed
Adjustable Closing Speed
Rut Lock
Fire Rated FD30 to FD120 Timber Doors
See below download
Guarantee
Secured By Design
Min door 920mm Fig1 887mm Fig66
Back Check
Options:
+ Hold open arm-set (not suitable for fire doors)
+ Delayed action
Available finishes:
Silver (SE)
Satin Nickel Plate (SNP)
Polished Nickel Plate (PNP)
Polished Brass (PVD)
Antique Brass (AB)
Satin Brass (SB)
Black (BK)
