Installation Jig
This lightweight, universal door closer installation jig is designed for professional installers who need precision and efficiency on every job.
Built with strong tool grade material bushings, it allows accurate drilling of pilot holes that stand up to repeated use.
Perfect for door manufacturers and contractors.
Available for the below door closers:
- TS.11205
- TS.11204
- TS.9205
Downloads
Fitting Instructions
Fitting Instructions - Push side
Relevant Products

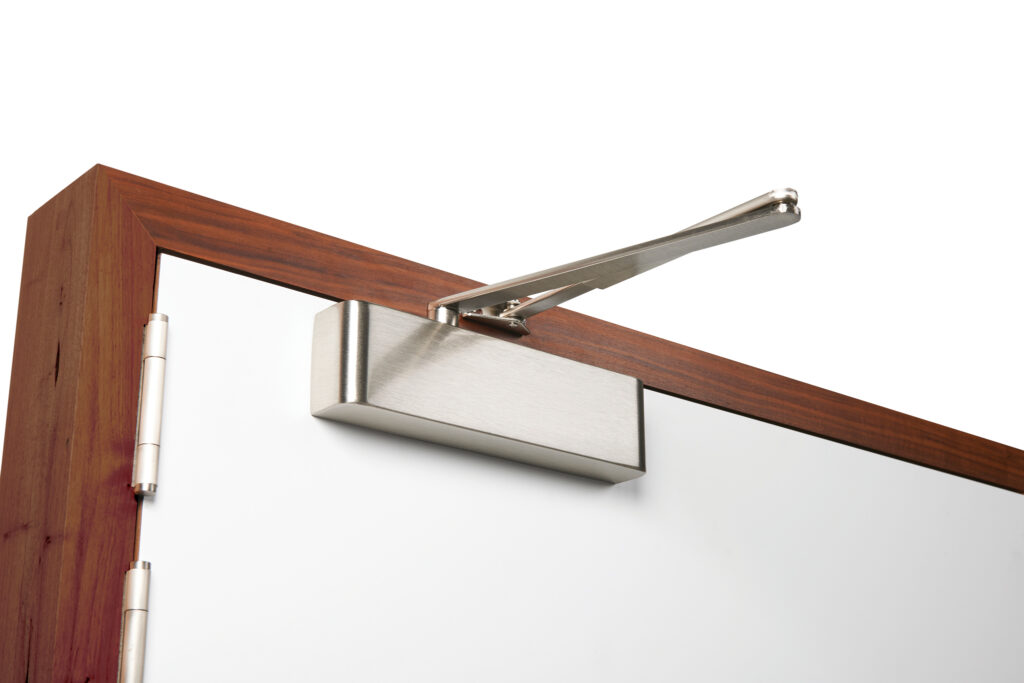

TS.9205 Door Closer
The Rutland TS.9205 Certifire approved Door Closer is engineered to last, known for its high efficiency & ease of opening. They are super adjustable, and can be adjusted to suit almost all types of door.
The rack-and-pinion action of this range gives them positive strength to overcome air-pressure differentials (“blowing open”), making them the ideal closer for draughty corridors and external doors.
Successfully third party tested to BS EN1154 & CE marked to power size 2-5.

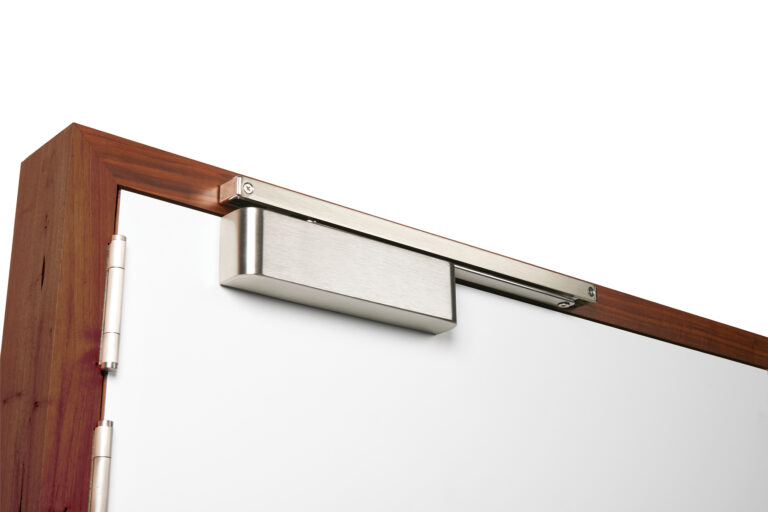

TS.11204 Cam Action Door Closer
Being renowned for its high efficiency and ease of opening with a cam action mechanism, the TS.11204 is a Certifire approved door closer for both push and pull side applications. This surface fixed slide arm door closer has a slimline projection of only 39mm, and is power adjustable by spring, power size 2-4.

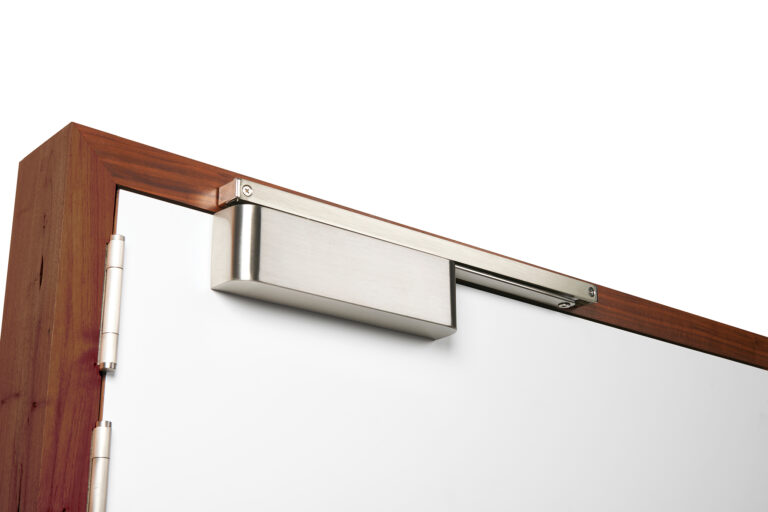

TS.11205 Cam Action Door Closer
Rutland TS.11205 is a Certifire approved door closer renowned for its high efficiency. This cam action closer makes opening doors easier assisting the less able while delivering enough power to close doors up to 1250mm wide and 110kg. Ideal for contracts where requirements include meeting Doc M and BS8300 (formerly DDA).
